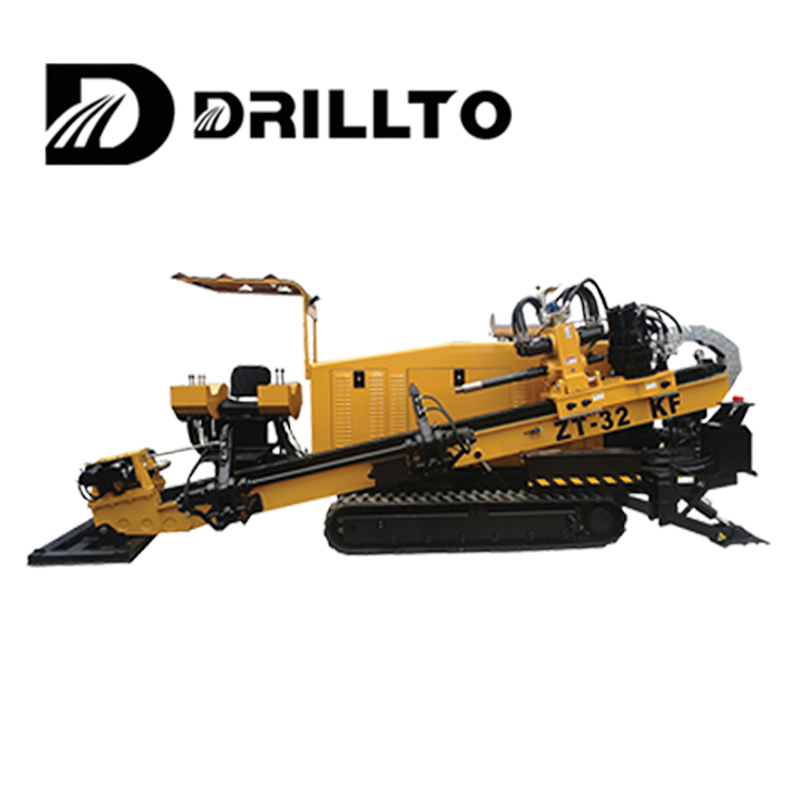

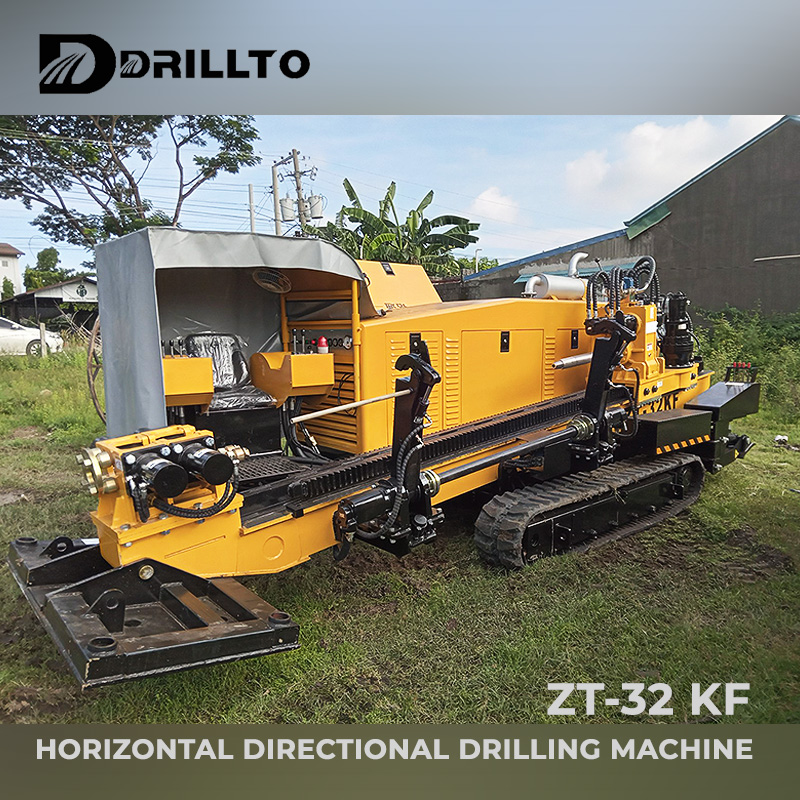

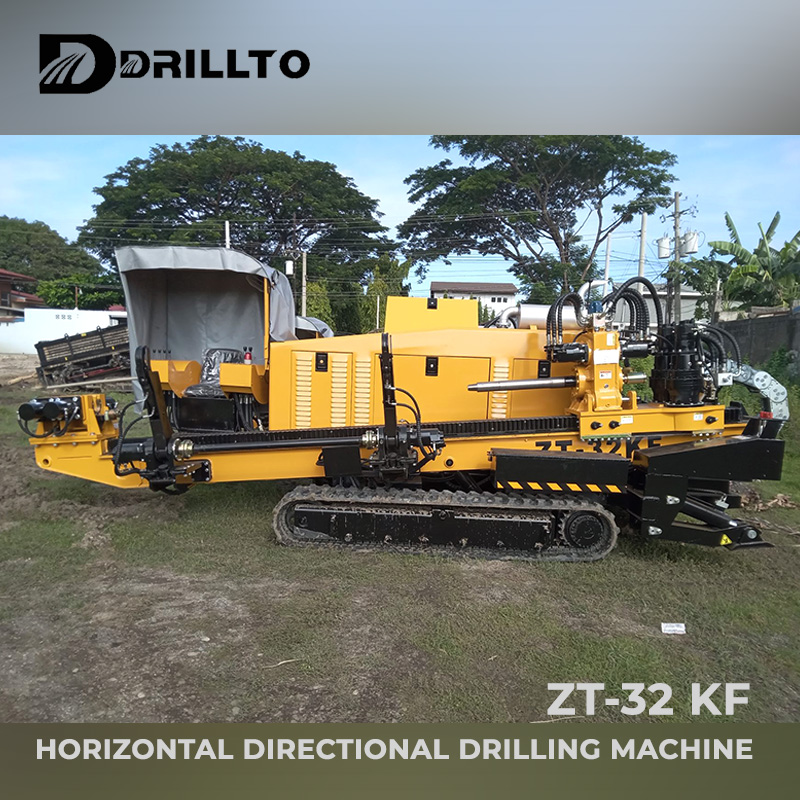

ZT-32 KF
Product Introduction:
The overall design of HDD Horizontal Directional Drilling Machine is beautiful, adopts a number of advanced technologies and the company’s proprietary technology, and the main performance parameters and control technology have reached the international advanced level. The key components are imported or joint venture products, with strong power and reliable performance.
Product Features:
1.Semi-automatic Arm Swing, increase efficiency and saving labor cost.
2.The entry angle close to the ground, saving drill rods and working space.
3.Rear leg apply large cylinder oblique support, beautiful and powerful.
4.Main pump is PERMCO triple pump, stable performance. The joint use flange-type good sealing performance.
5.Double speed valve using Italian-SANT brand, stable performance, strong control.
6.The wavy rain awning has good rain shelter effect, fan and lighting applied for friendly construction operation.
Technical Specification:
| ZT-32KF | |
| MAX TORQUE: | 12,000 N.m |
| ROTATION SPEED: | 0-145 rpm |
| MAX PULLING/ THRUST FORCE: | 320 KN |
| CUMMINS ENGINE: | 153 kW / 2200 rpm |
| PULLING SPEED: | 0-50 m/min |
| WALKING SPEED: | 2-4 km/h |
| ENTRY ANGLE: | 8-20° |
| MAX DIAMETER (MM) | 800 mm |
| WEIGHT: | 8,500 kg |
| DIMENSION （M）: | 6.2 x 2.28 x 2.5 |
