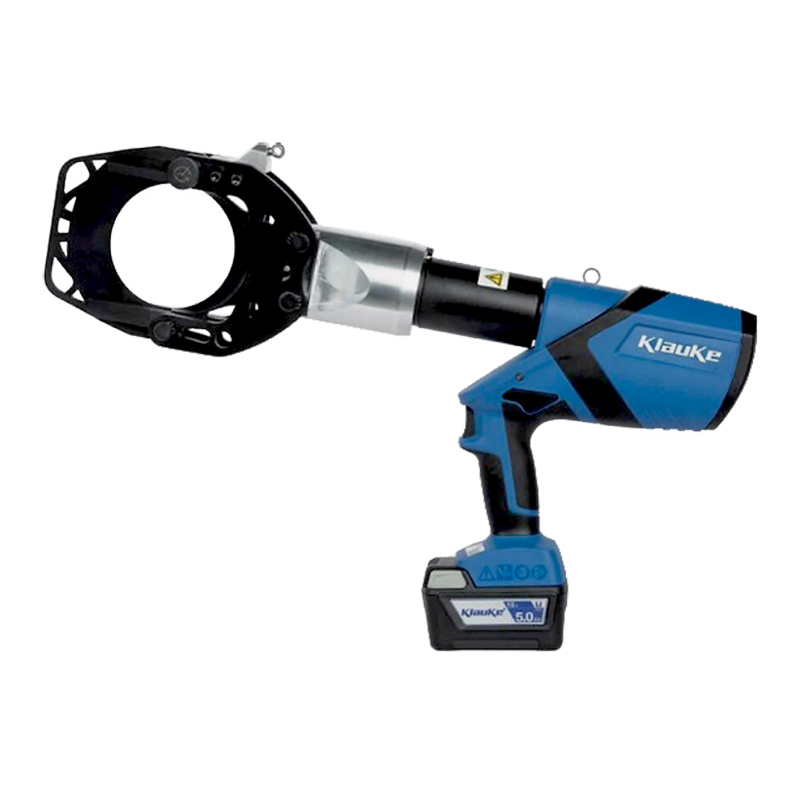

Battery Driven Hydraulic Cutting Tool
- Cuts armoured copper and aluminium cables
- 120 kN cutting force for extremely wide cutting range up to 105 mm dia.
- Remarkably lightweight for tools in this performance class
- Saves time with multiple cuts thanks to innovative opening mechanism
- All tool data in view thanks to display and Klauke Link app
Features
- Choose your battery system: Bosch or Makita
- All data can be easily read via Bluetooth
- Closed head with bolt interlock, rotatable, flip top style
- Simple and safe: one-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- LED for work area illumination
- 2-stage hydraulic system with fast feed and power stroke
- Simple and safe: automatic retraction when operation is complete
- Manual retract stop (MRS) for efficient operations
- Always ready-to-use thanks to battery charge and service display
Suitable for
- Lightly armoured Cu and Al cables
Technical Specification | |
Working Force | 120 kN |
Cutting Capacity | Copper-aluminum armored cable |
Opening Size | Diameter 105mm |
Tool Weight | 9.5 kg (with battery) |
Charging Time | About 80 min |
Cyales Per Charge | 10KV 3x400mm2 YJV22 cable, about 80 |
Categories Cutting & Crimping Tools, Utility Infrastructure
