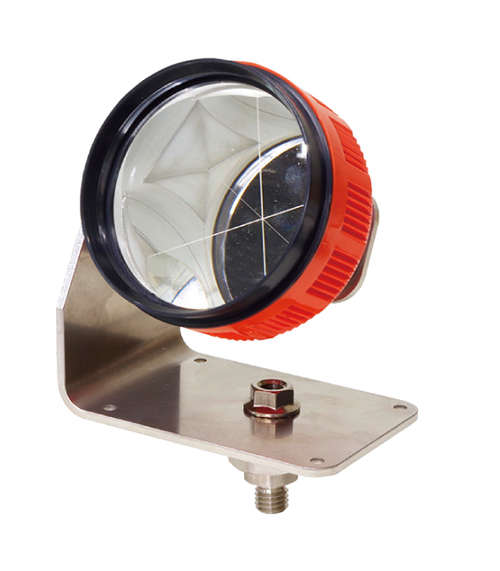

2.5 Inch Monitoring Base Kit
FEATURES
Model | Prism size | Prism constant | Screw size |
TT-41 | 2.5inch (63.5mm) | -41mm | M8 |
Set contents: Prism, Base plate, Anchor

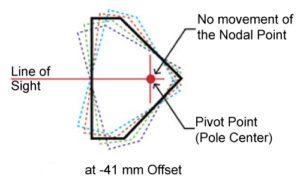

[Nodal Prism]
Surveying prisms and holders that are not in the nodal position can cause angular errors when using the prism apex as a target if it is not perfectly pointed towerd the measuring instrument.
To reduce pointing errors, Nodal prisms are designed with a nodal point alignment at -41mm offset for 2.5inch prism.
To compensate for pointing errors, nodal point alignment minimizes the error associated with misalignment.
OPTION

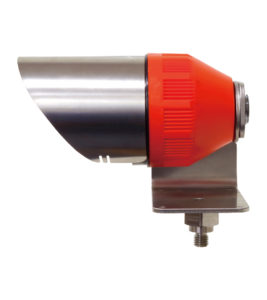

Rain Cover for 2.5inch Prism RC-25
Full availability of the prism even in rainy conditions. RC-25 protects the prism front against rain drops and dust.
Code No. | Product Name | Model |
222256 | 2.5inch Monitoring Base Kit | TT-41 |
222257 | Rain Cover for 2.5inch Prism | RC-25 |
