Portable Axle Weigh Pads

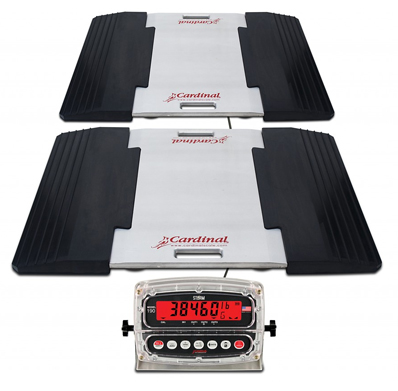

Cardinal CWL-40 Axle Scales feature two rugged lightweight 28.5 x 17.5-inch platforms, interlocking rubber ramps, optional rechargeable battery, capacity of 20,000 lb per platform or 40,000 lb per axle, optional mobile printer, wide platform accommodates dual axles, and integral carrying handles.
Cardinal Scale’s CWL-40 axle load scales are constructed of heavy-duty cast aluminum for high strength-to-weight ratio. Weighing only 57 pounds (26 kg) per 28.5 x 17.5-inch (72 x 45 cm) platform and featuring integral carrying handles, the CWL-40 axle pads are light enough for easy transport from location to location. The interlocking rubber ramps easily snap in place once you’re ready to weigh. The CWL-40KIT contains two CWL-40 axle pads with 20-ton capacity, rubber ramps, and necessary cables, plus Cardinal’s 190A weight indicator with axle weighing software and P150 thermal ticket printer. Both the 190A indicator and P150 printer may be powered by rechargeable lithium ion batteries (optional – 190A / standard – P150). The 190A indicator features two RS232 serial ports (to connect with a printer and remote display) and the one-inch-high backlit LCD is visible in direct sunlight and at night.
Features
- 20-Ton Capacity Per Axle
- Each Platform Weighs Only 57 lb
- Heavy-Duty Cast Aluminum Platforms
- Interlocking Rubber Ramps
- Low-Profile 1.75-in-high
- Print Axle Weight and Gross Weight
- Rechargeable Battery Power
- Six-Strain-Gauge Load Cell Design
Specifications
- Capacity: 20,000 lb (9,000 kg) per platform or 40,000 lb (18,000 kg) for single axle
- Division Size: 20 lb
- Safe Overload: 150% of capacity
- Number of Load Cells: 6 each strain gauge load cells
- Accuracy: The greater of +/-0.3% of applied load or 1 division
- Platform Size: 24.5 in L x 14 in W weighing surface
- Overall Size: 28.5 in L x 17.5 in W x 1.7 in H including carrying handles
- Ramps: Interlocking, slip-resistant rubber ramps measure 28.5 in L x 10 in W each
- Deck Construction: Aluminum
- Single Axle Pad Weight: 57 lb (26 kg) per platform
- Shipping Weight: CWL-40KIT – 280 lb (127 kg)
- Cable Length: Wheel Pad to Wheel Pad – 63 inches / 160 cm
- Cable Length: Wheel Pad to Indicator – 50 feet / 15 m
