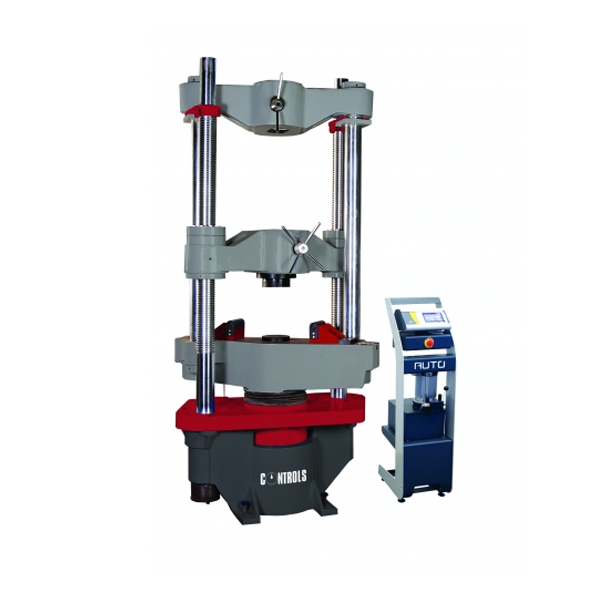

1000 kN UTM - HPT Series with Automax T Control Unit
GENERAL DESCRIPTION
Featuring almost the same performances of the HPU 200 Series at a more affordable price thanks to the application of the AUTOMAX T technology.
High flexibility covering the following applications:
Steel
- Tensile tests on steel rebars and rounds up to 50 mm dia.
- Tensile test on steel flats up to 60 x 90 mm
- Tensile tests on wire strands and electro-welded steel screen
- Transverse tests on steel specimens
- Bend and re-bend tests on steel specimens
- Brinnel with 10mm ball
- Shear tests on rounds
Concrete
- Compression tests on cubes and cylinders
- Flexural tests on concrete beams
- Indirect tensile on cylinders, cubes and paving blocks
- Determination of the Modulus of elasticity
- Pull out test
MAIN FEATURES
- HIGH FLEXIBILITY
- Performs both tension tests on steel rounds and flats, and compression/transverse/splitting/elastic modulus tests on concrete
- RUGGED FOUR COLUMN FRAME
- Extremely rigid four column frame with large vertical clearance suitable for tension and compression tests
- FRONT OPEN CROSSHEAD
- For easy insertion of tensile specimens. The jaws and grips can be easily removed by just pulling from the front. Hydraulic gripping system operated by push button panel
- HIGH ACCURACY WITH LOAD CELL
- Load measurement by high precision load cell providing high accuracy from the very beginning of load scale.
- FULL RANGE OF ACCESSORIES
- available to perform various tests, including Extensometers, Transverse and Bending test apparatus for steel, Compression-Flexural and Indirect tensile test on concrete, etc.
- PC CONTROLLED
- Completely automatic test execution
- SOFTWARE PACKAGES INCLUDED
- Supplied complete with management software and software packages concerning wide range of tests on steel, concrete and other construction material.
