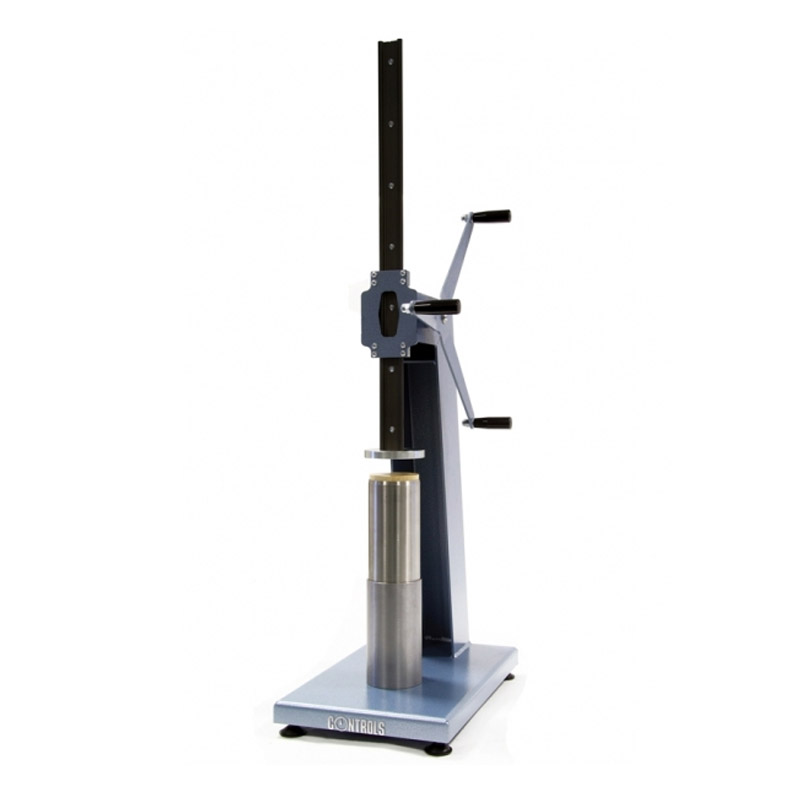

Soil sampler, cutter and extruder
MAIN FEATURES
- Specimen cutting: up to 100mm circular and square samples
- Speciment extrusion: up to 200mm high samples (more than 600mm daylight is required for 100mm dia sample extrusion)
- Upper plate size: 120mm
- Vertical Daylight: 620mm
- Overall sizes: 525x360x1530mm ( included the rack and pinion mechanism extended)
- Weight: 22kg
GENERAL DESCRIPTION
This versatile sampler can be used to extrude and prepare soil samples for the following soil mechanics tests:
- consolidation
- shear
- triaxial
- permeability
- other tests
Various circular, cylindrical and square cutters are available from our range, depending on the geotechnical test to be performed. The cutter is genlty (thank to the rack and pinion mechanism) pushed into the soil core and then extruded with the extrusion dolly. See the table of accessories for more details.
