Laboratory Vane Apparatus
MAIN FEATURES
- Manual or motorized versions available
- Lightweight, compact and portable, ideal for site or main laboratory
- Convenient and rapid method of determining shear strength of soft soils
- Easy to use: many hundreds in operation today
GENERAL DESCRIPTION

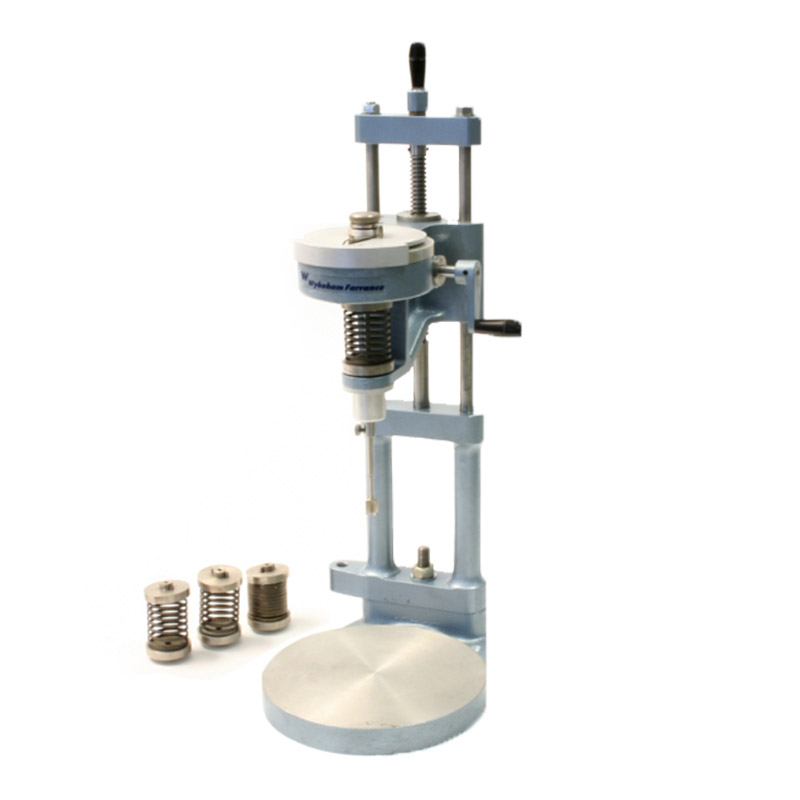

The laboratory vane apparatus is based on a original concept of the Transport and Road Research Laboratory of the United Kingdom. It can be provided with a wide range of vane sizes, although as standard, it is sold with the 12.7 mm square vane and a set of four calibrated springs. The test can be performed directly on the sample or in the sample contained in the sampling tube. In this case the 27-WF1736 Attachment for 38 and 100 mm dia. sampling tubes, should be used. See accessories. Furthermore a motorizing unit is also available: see accessories 27-WF1730/2 , /3 and /4.
Weight approx.: 11 kg
Categories Materials Testing Equipment, Soil Mechanics
