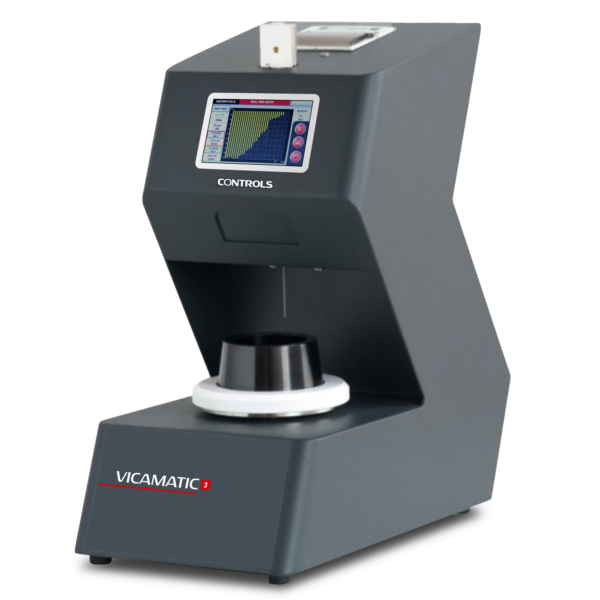

Automatic Vicat Apparatus – VICAMATIC3
Fully automatic setting time tester with double control mode (local and remote by PC), programmable test procedure, user friendly interface, integrated graphic printer.
CONTROLS have long been manufacturing automatic setting time testers for cement and mortar. A fourth generation is now available, featuring a large color 5.1” touch screen display. As with previous models, the test procedure remains unchanged: a needle (or a probe) drops freely into a cement sample at regular intervals and in fixed positions, measuring penetration depth with a 0.1 mm resolution sensor. As the sample hardens, the depth of penetration decreases. When reaching the predefined thresholds established by Standards, it is time to measure and record the initial and final setting times.
Features:
- Advanced electronics technologies providing superior performances and total flexibility combined with simplicity in use
- Easy-to-use double interface: local mode, with large size 5.1″ touch screen color display, and remote mode, with PC
- Supplied complete with PC software for data processing VICASOFT-BASIC
- With PC software VICASOFT-PREMIUM (optional) up to 32 independent units (including VICAMATIC 2 models) can be connected to a single PC via LAN port and hub. All units are remotely controlled. Adopting the multi-test network concept laboratory productivity is maximized
- Integrated graphic printer is available as optional accessory showing both results in numerical format and setting time plot
- Easy setting and storage of user-defined test profiles allowing quick test start
- Large accessibility to the test space
- Complete with needle cleaning device
- Practical in-water testing accessory (optional)
- Automatic determination of initial and final setting time
Technical Specifications
- Conforming to EN 196-3, 13279-2, 480-2, ASTM C191, C187

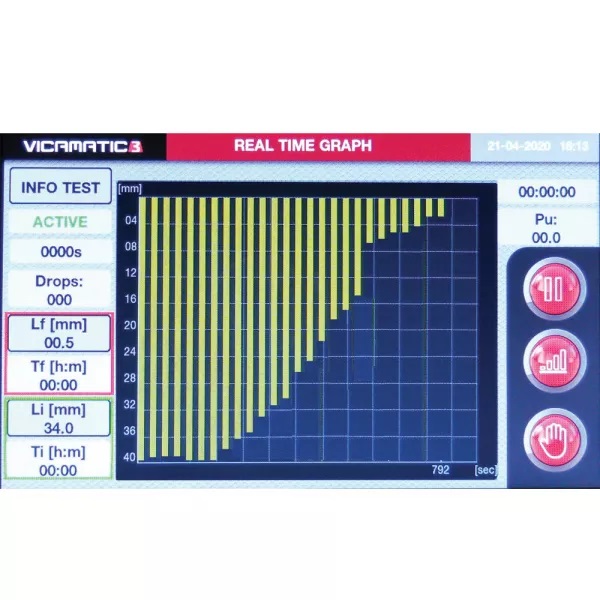

- 5.1”, 800 x 480 pixel, 16 M colors, icon-driven touchscreen graphic display, showing data and plots
- LAN port for direct connection to PC of a single unit or connection to a LAN hub for creating a network with up to 32 independent units all controlled by a single PC. 1 LAN cable is included
- USB port for test data download to PC and easy firmware upgrade
- Unlimited storage capacity for test data on internal 16 GB SD card
- Test procedures can be customized and stored to match user-defined requirements
- Can incorporate an integrated graphic printer showing test result and setting time plot
- Large test space with easy accessibility
- Automatic calculation of initial and final setting time at programmable penetration depth limits
- Wide range of accessories including EN and ASTM/AASHTO parts, in-water testing kit, needle cleaning device, integrated printer, probes for testing consistency and gypsum
- Minimum penetrations rate: 10 seconds
- Penetration measurement by encoder
- Power: 50 W
- Dimensions: 200x400x410mm (L x W x H)
- Weight approx.: 10 kg
