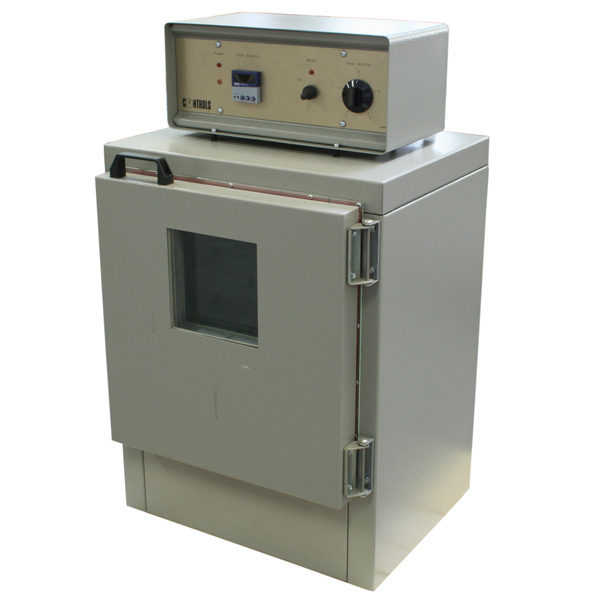

TFOT Bitumen Oven
GENERAL DESCRIPTION
Used for determining the loss in mass (exclusive of water) of oil and bituminous and the effect of heat and air on a film of semi-solid bituminous material. Depending on the standard in use, the TFOT oven has to be completed with the accessory to perform the test as follows:

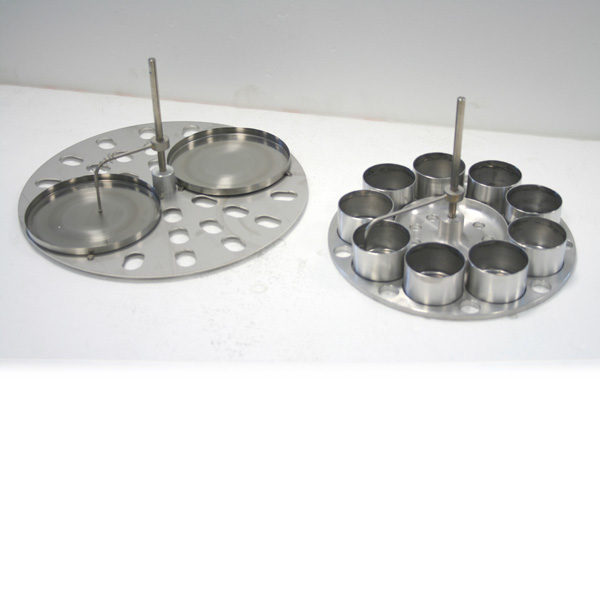

For EN 13303, ASTM D6, AASHTO T47, BS 2000, NF T66-011, CNR No. 50 select accessory 81-B0160/1
For EN 12607-2, ASTM D1754, AASHTO T179, UNE 7110 select accessory 81-B0160/2.
The TFOT bitumen oven can be used as part of your Superpave performance based testing program.
TECHNICAL SPECIFICATIONS
- – Internal chamber made from stainless steel
- – Insulation with fiberglass or similar
- – External frame made from enameled steel
- – Temperature control by contact thermometer
- – Door with double panel window
- – Power: 1300 W
- – Internal dimensions: 330x330x330 mm
- – Outside dimensions: 500x500x900 mm
- – Weight approx.: 35 kg
